Everything You Need to Know to Build a Safe, Scalable, and Skill-Focused Electric Vehicle Training Lab
Introduction
With the rapid global shift toward electric vehicles (EVs), the demand for skilled EV technicians and engineers has never been higher. According to the International Energy Agency (IEA), the number of electric cars on the road surpassed 40 million globally in 2024, and this number is projected to double by 2030. However, there’s a critical shortage of trained personnel capable of diagnosing, repairing, and safely working on high-voltage EV systems.
Whether you’re a vocational school, technical college, or a training provider, setting up an EV training lab is no longer optional—it’s essential.
This guide will walk you through every step of setting up an Automotive EV Lab, focusing on beginner-level training needs. From space planning and equipment selection to budgeting and instructor preparation, we’ll provide practical solutions and industry-backed advice to ensure your lab is safe, future-ready, and truly impactful.
1. Understand the Purpose of Your EV Lab
Before purchasing any equipment or renovating your training facility, it’s vital to clarify why you’re building an EV lab and who it is for.
Define the Objectives
Ask yourself:
- Are you training entry-level technicians or upskilling experienced automotive workers?
- Do your trainees need to be certified under standards like ASE L3, IMI Level 3, or local government vocational frameworks?
- Will the lab focus on basic electric vehicle concepts, fault diagnostics, or hands-on maintenance and repair?
Example Use Cases:
- A technical school may prioritize basic EV operation, circuit theory, and battery system familiarization.
- A certification center might focus on diagnostics tools, advanced inverter technologies, and high-voltage safety protocols.
🎯 Tip: Align the lab’s purpose with local industry needs and job placement outcomes. A clearly defined goal will shape the equipment, curriculum, and budget decisions down the line.
2. Choose the Right Location & Layout
An EV lab isn’t just a classroom—it’s a space where electricity, electronics, and mechanics intersect at high voltage. A well-planned layout ensures both safety and efficiency.
Key Requirements:
- Space: Minimum 60–100 square meters for a basic setup. Separate theory and practical areas.
- Ventilation: Adequate airflow for battery and charging trainers to avoid heat buildup.
- High-Voltage Safety Zones: Delineate and isolate zones using floor tape or safety barriers.
- Lighting: Bright, shadow-free lighting is essential for component work.
- Power Supply: Ensure three-phase power is available for certain high-demand trainers.
- Anti-Static Flooring: Especially in areas where battery modules or sensitive electronics are handled.
- Storage & Workbenches: Tool cabinets, insulated workbenches, and locked PPE storage.

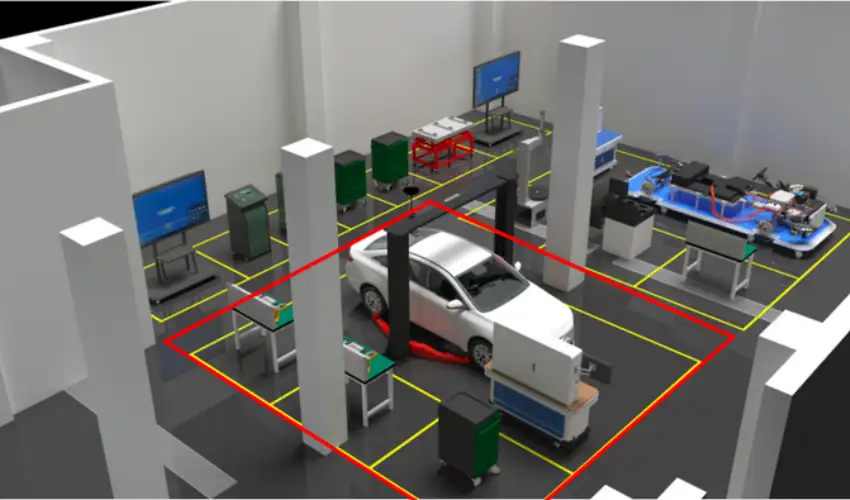

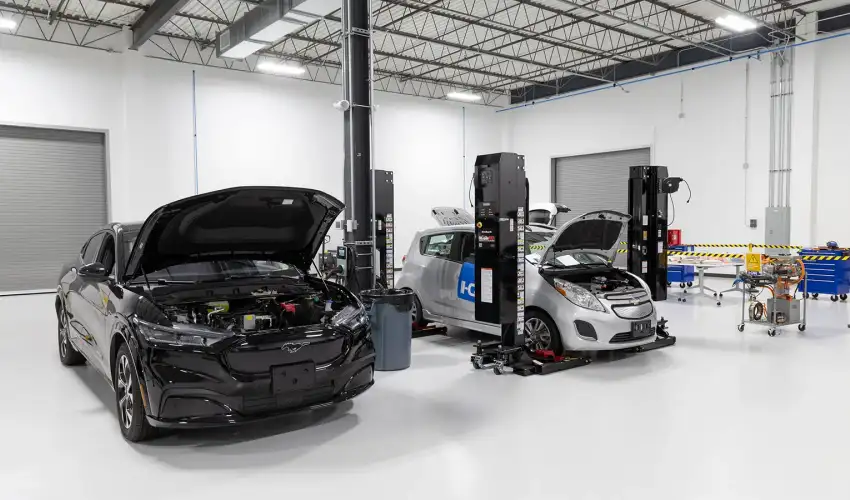

Suggested Layout Zones:
- Zone A – Classroom Area: For theoretical instruction and digital simulations.
- Zone B – Practical Lab Area: Hands-on trainers, test benches, and fault panels.
- Zone C – Safety Equipment & Emergency Access: Fire extinguishers, isolation switches, PPE racks.
📌 Pro Tip: Plan electrical points, ventilation ducts, and signage placement early—retrofitting these later is expensive and disruptive.
3. Select the Right EV Training Equipment
The choice of training equipment is the heart of your EV lab. For beginners, the focus should be on systems that are safe, modular, and easy to teach with.
Recommended Entry-Level Equipment:
| Equipment Type | Function | Price Range (USD) | Beginner Friendly |
|---|---|---|---|
| EV Basic Electrical Trainer | Teaches voltage, current, Ohm’s Law | \$1,200 – \$1,800 | ✅ Yes |
| High Voltage Safety Trainer | Demonstrates lockout/tagout, PPE usage | \$2,000 – \$3,000 | ✅ Essential |
| Powertrain Cutaway Model | Visualize motor, inverter, gear train | \$3,500 – \$5,000 | ✅ Highly visual |
| BMS (Battery Management System) Trainer | Simulate charging, thermal control, fault detection | \$3,000 – \$4,500 | ⚠️ Needs supervision |
| EV Diagnostic Fault Simulation Board | Practice using multimeters & OBD tools | \$1,500 – \$2,200 | ✅ Yes |
| AC Charging Station Trainer | Learn charging protocols (Type 1 / 2) | \$2,000 – \$3,000 | ⚠️ Needs basic grounding |
📊 According to industry reports, labs using modular and simulation-based trainers see a 34% faster onboarding of new learners and significantly lower safety risks in the first six months.
4. Implement Safety Measures
Safety is non-negotiable when working with electric vehicles—some systems operate at 400V–800V, which can be lethal if handled incorrectly.
Essential Safety Protocols:
- Personal Protective Equipment (PPE): Insulated gloves, face shields, HV boots, and arc-rated clothing.
- Emergency Shut-Off Systems: Each trainer should be equipped with kill switches and E-stop buttons.
- Rescue Tools: HV rescue hooks, insulated poles, fire blankets.
- Standard Operating Procedures (SOPs): Post clearly visible step-by-step guides for high-voltage handling.
- Safety Signage: High voltage warnings, restricted access markers, and lockout/tagout indicators.
Regulatory Compliance:
Ensure your lab complies with:
- IEC 60947, NFPA 70E, ISO 6469-3 (for EV safety)
- Local electrical installation codes
🛡️ Proper safety setup not only protects lives—it builds learner confidence and reduces liability risk.
5. Build the Curriculum Around Hands-On Learning
A great lab is only as effective as the curriculum behind it. For electric vehicle training, it’s critical to design a structured learning path that moves students from theory to practice, with a focus on safety, diagnostics, and real-world applications.
Suggested Curriculum Framework:
| Module | Key Topics | Teaching Tools |
|---|---|---|
| Module 1: EV Safety & PPE | High-voltage safety, lockout/tagout, PPE handling | HV Safety Trainer, SOPs |
| Module 2: Basic Electricity | Ohm’s Law, DC/AC circuits, resistors, capacitors | Electrical Trainer, Multimeter |
| Module 3: EV Components Overview | Motors, inverters, battery packs, converters | Powertrain Cutaway, Videos |
| Module 4: Battery Systems | BMS, thermal control, charging/discharging | BMS Trainer, CAN Simulation |
| Module 5: Diagnostics & Fault Finding | OBD, CAN bus, fault codes, isolation testing | Fault Board, Scan Tools |
| Module 6: Charging Systems | AC/DC charging, protocols, safety standards | Charging Station Trainer |
Teaching Support Materials:
- Simulation software (e.g., Electude, SimSpray EV, virtual twins)
- Digital workbooks with schematics and lab tasks
- Video walkthroughs for system teardown and rebuilds
- Assessment tools: quizzes, checklists, fault troubleshooting tasks
📈 Labs that combine physical trainers with digital simulations improve learner retention by over 40% compared to lecture-based methods alone (source: SAE International, 2023).
6. Train Your Instructors
Instructor competency is the backbone of any EV program. If your instructors are not confident or qualified to deliver EV content, even the most advanced equipment won’t lead to effective learning.
Key Instructor Qualifications:
- Certification in High Voltage Safety (Level 2 or higher)
- Working knowledge of CAN bus diagnostics and EV architecture
- Familiarity with lab safety enforcement and risk management
- Experience using multimeters, scan tools, and OBD-II systems
How to Prepare Instructors:
- Partner with equipment manufacturers who offer on-site or remote training.
- Invest in certification programs (ASE, IMI, OEM training).
- Encourage participation in EV training conferences or webinars (e.g., ATE, EVTechExpo).
🎓 Consider scheduling a “train-the-trainer” program before launching your lab to ensure consistency in teaching quality and safety compliance.
7. Estimate the Budget and Timeline
EV labs don’t have to break the bank. Start with a modular setup and scale as demand grows. Here’s a realistic cost breakdown for a beginner EV lab sourced from a reliable Chinese manufacturer like VocatEdu:
💰 Sample Budget (Entry-Level Lab):
| Item | Qty | Unit Price (USD) | Total (USD) |
|---|---|---|---|
| Basic Electrical Trainer | 2 | \$1,500 | \$3,000 |
| High Voltage Safety Trainer | 1 | \$2,500 | \$2,500 |
| Powertrain Cutaway | 1 | \$4,000 | \$4,000 |
| BMS Trainer | 1 | \$3,500 | \$3,500 |
| Charging Station Demo | 1 | \$2,500 | \$2,500 |
| Diagnostic Fault Board | 2 | \$1,800 | \$3,600 |
| Safety Tools & PPE | N/A | \$1,000 | \$1,000 |
| Total Estimate | \$20,100 |
📌 Costs may vary based on shipping, taxes, and customization.
⏳ Timeline (From Order to Launch):
| Phase | Duration |
|---|---|
| Equipment Configuration & Order | 3–5 Days |
| Manufacturing & Assembly | 15–30 Days |
| International Shipping | 20–35 Days (Sea), 7–10 Days (Air) |
| Customs Clearance & Local Setup | 5–10 Days |
| Instructor Training & Lab Testing | 3–5 Days |
| Total Estimated Time | 45–60 Days |
8. Find the Right Equipment Supplier
The success of your lab depends on reliable, scalable, and well-supported equipment. Choosing the wrong supplier can lead to delays, poor technical documentation, or even safety hazards.
What to Look For in a Supplier:
- Experience with vocational and technical education
- Capability for customized lab kits and layout planning
- Certification support (e.g., CE, ISO9001, UL)
- Strong after-sales support with English documentation
- Optional curriculum and instructor training
Recommended Suppliers:
- VocatEdu (China): Custom EV training kits with global delivery and full documentation
- Lucas-Nülle (Germany): High-end modular training systems
- Lab-Volt by Festo (USA): Integrated curriculum solutions
- Emona Instruments (Australia): Advanced simulation tools
🛠️ Always request a full equipment list, warranty terms, and installation guides before signing contracts.
9. Plan for Expansion & Maintenance
Even a beginner lab should be designed with future-proofing in mind. Choose systems that can grow with your curriculum.
Expansion Tips:
- Use modular systems that allow plug-in upgrades (e.g., hybrid → EV → hydrogen fuel cell)
- Allocate budget for additional trainers every 1–2 years
- Incorporate new diagnostic software updates regularly
Maintenance Tips:
- Create a quarterly inspection schedule for all equipment
- Keep spare fuses, probes, test leads, and control modules in stock
- Train lab managers in basic equipment calibration and diagnostics
🔧 A well-maintained lab not only ensures safety but also extends equipment lifespan by 2–3 years on average.
Conclusion: Your EV Lab, Future-Proofed
Setting up an EV lab may seem daunting, but with clear goals, the right equipment, and a practical curriculum, it becomes a strategic investment in the future of education. As the EV market expands, your lab will become a key driver in preparing the next generation of technicians, engineers, and innovators.
Need help planning your EV lab? 👉 Contact our technical team for a free layout consultation and equipment list.
Still exploring? 📞 Book a video meeting with an EV training expert today and get personalized advice.
