Your Complete Guide to Planning, Designing, and Equipping an Automotive Training Facility
Introduction
Designing an effective automotive training room layout is essential for schools, colleges, and vocational institutions aiming to equip students with practical skills for the automotive industry. A well-structured layout not only improves learning efficiency, but also enhances safety, ensures optimal use of space, and allows for future scalability as training needs evolve.
In this guide, you will find:
- Practical design principles tailored to schools of different sizes
- Layout examples with essential zones for both theory and practice
- A comprehensive equipment checklist aligned with real-world training needs
- Insights into safety standards and future trends
With VocatEdu’s expertise as a professional automotive training equipment manufacturer, we combine layout insights with equipment solutions, helping schools build training environments that are functional, safe, and future-ready.

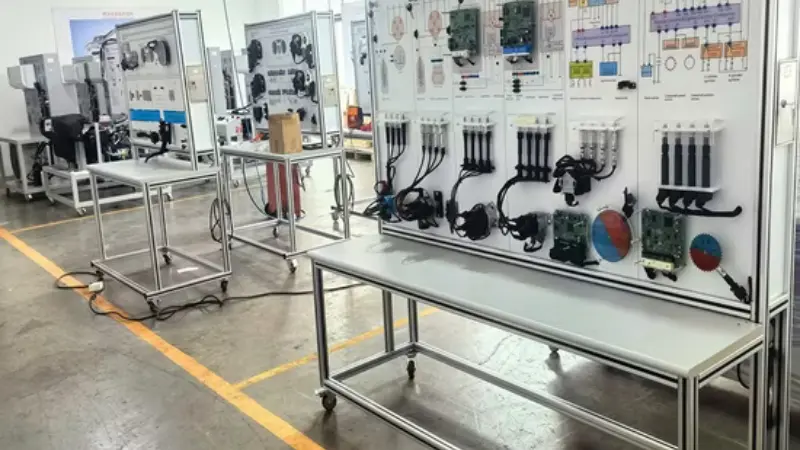

Key Factors to Consider in Automotive Training Room Layout
When planning an automotive training room, schools should consider several critical factors that impact daily teaching and long-term usability.
Space Planning
- Define total area based on student numbers and training scope.
- A facility for 30 students typically requires 150–200 m², while advanced centers may exceed 500 m².
Functional Zoning
- Separate lecture areas and hands-on workshop zones to minimize disruptions.
- Clearly defined zones improve safety and teaching efficiency.
Safety and Ventilation
- Proper air circulation, fume extraction, and noise control are mandatory in automotive workshops.
- Meeting safety standards ensures compliance and reduces risks.
Workflow and Traffic Flow
- Maintain 1.5–2 meters of clearance around major equipment.
- Plan separate movement paths for students, instructors, and vehicles.
Future Expansion
- Opt for modular layouts that allow new equipment such as EV trainers or hybrid systems to be integrated without costly renovations.
Standard Layout Types for Automotive Training Rooms
Different institutions require different room configurations depending on class size and curriculum.

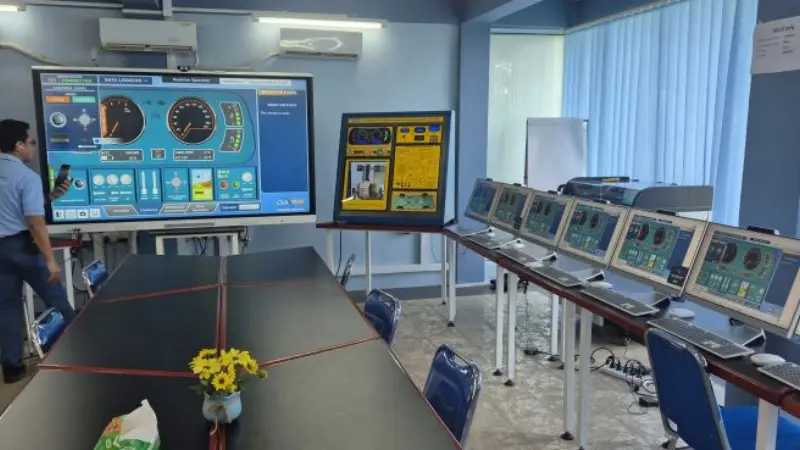

Small Training Room (20–30 Students)
- Area: 100–150 m²
- Design: Compact, combining classroom and small workshop
- Setup: 1–2 car lifts, 1 engine trainer, limited tool storage
- Best suited for secondary schools or entry-level programs

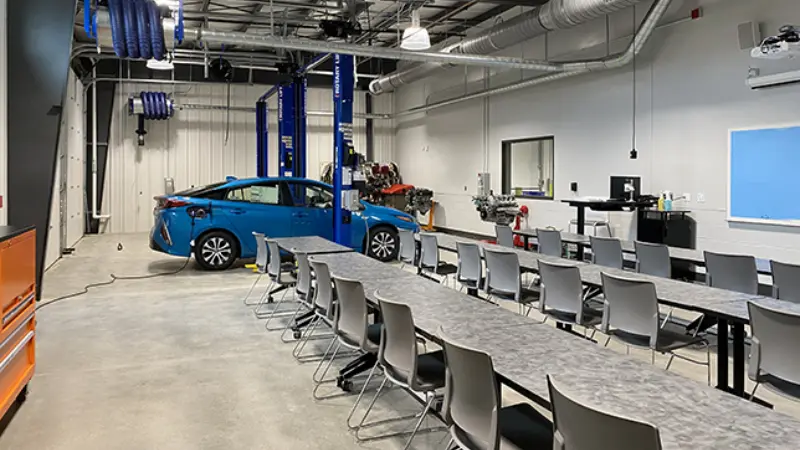

Medium Training Room (30–60 Students)
- Area: 200–350 m²
- Design: Separated classroom and workshop zones
- Setup: 2–3 lifts, 3–5 engine trainers, diagnostic benches
- Ideal for vocational schools with dedicated automotive programs

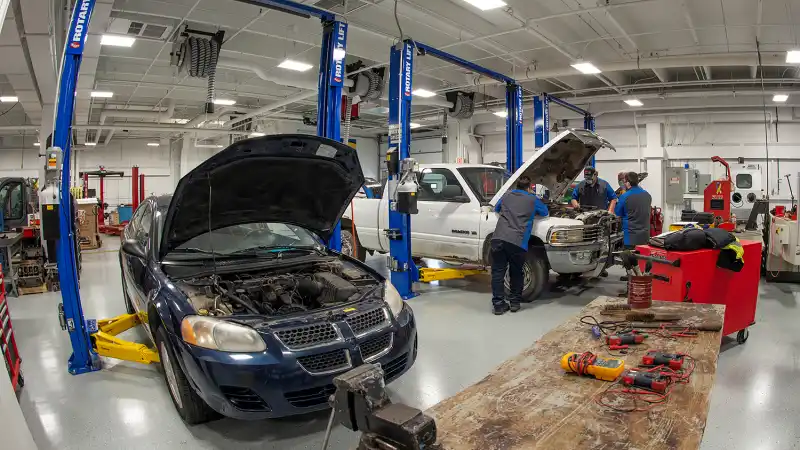

Large Training Facility (60+ Students)
- Area: 500 m²+
- Design: Multi-zone modular layout with multiple work bays
- Setup: Multiple lifts, EV/hybrid labs, advanced diagnostic zones
- Suitable for universities and regional training centers
(Insert schematic floor plan or illustration for visual guidance)
Essential Zones in an Automotive Training Room
To balance theoretical knowledge with practical application, an effective training room should include the following zones:

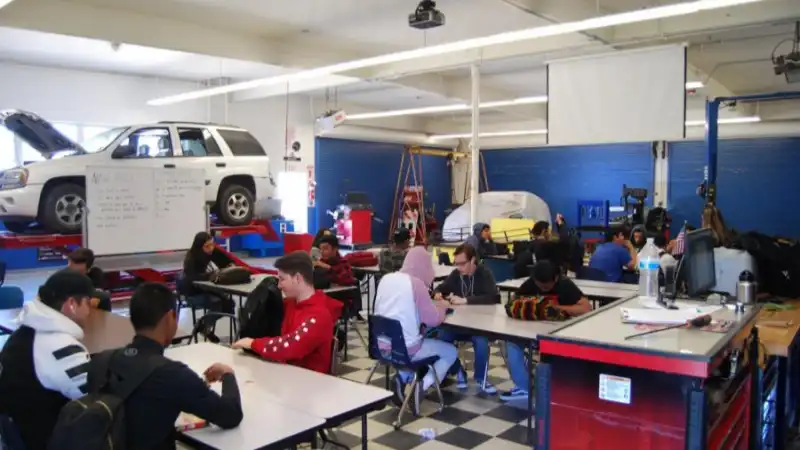

Lecture/Classroom Area
Equipped with projectors, seating, and multimedia tools for theory-based lessons.

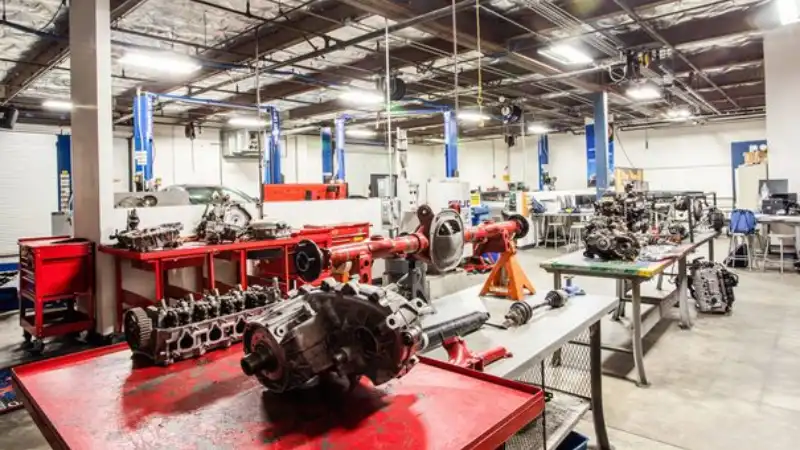

Hands-On Workshop Area
Designed for engines, transmissions, and vehicles with vehicle lifts, trainers, and workbenches.
Diagnostic & Electrical Lab
A specialized zone for EV trainers, hybrid systems, and diagnostic equipment.
Storage Area & Tools Room
Secure storage for tools, consumables, and spare parts, ensuring a clutter-free workshop.
Safety & Emergency Zone
Fire extinguishers, exhaust systems, and emergency exits to comply with international safety standards.
Equipment Planning for Schools
The right choice of equipment defines the effectiveness of the training room.
Essential Equipment List
- Vehicle lifts and hoists
- Engine and transmission trainers
- EV & hybrid trainers
- Diagnostic scanners and benches
- Electrical and electronics boards
- Safety equipment and toolkits
Recommended Configurations
- Basic Package (Small Schools): 1 lift, 1 engine trainer, electrical board, essential tools
- Intermediate Package (Mid-Sized Schools): 2–3 lifts, 3–5 trainers, 1 EV/hybrid trainer, diagnostic scanners
- Advanced Package (Large Facilities): Multiple lifts, full EV/hybrid training labs, multimedia integration
At VocatEdu, we provide turnkey equipment solutions tailored for schools of all sizes. Our products are widely used in vocational schools and universities worldwide, ensuring both reliability and compliance with educational standards.

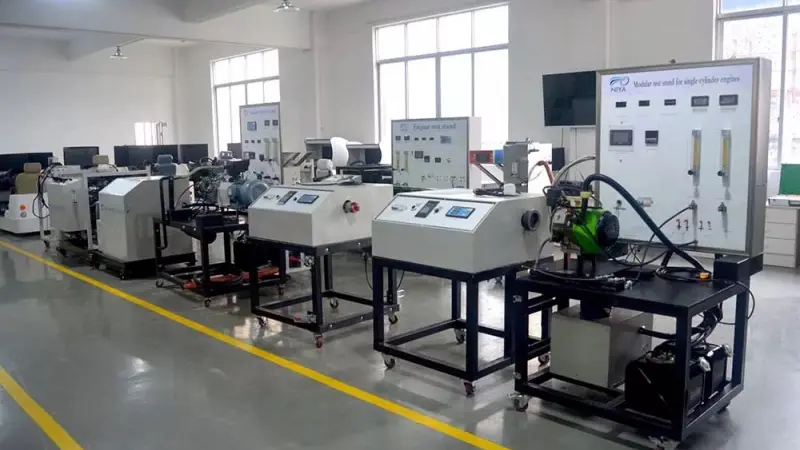

Cost & Budget Considerations
One of the biggest challenges for schools is balancing budget limitations with the need for comprehensive training facilities. A realistic cost plan helps institutions maximize learning outcomes while staying within financial constraints.
Average Construction and Setup Costs
- Small Training Rooms (100–150 m²): Approx. \$50,000–80,000, covering essential lifts, trainers, and safety equipment.
- Medium Training Rooms (200–350 m²): Approx. \$100,000–200,000, including multiple trainers, diagnostic systems, and storage.
- Large Training Facilities (500 m²+): Costs can exceed \$300,000, especially when integrating advanced EV/hybrid labs and multimedia classrooms.
Balancing Budget vs. Functionality
- Prioritize core equipment such as lifts, engine trainers, and diagnostic tools.
- Expand later with specialized EV or hybrid trainers as budget allows.
- Use modular layouts to reduce renovation costs when upgrading.
Cost Optimization with VocatEdu
At VocatEdu, we help schools reduce costs through:
- Direct factory pricing with no middleman markup
- Customizable packages tailored to school size and budget
- Global logistics support to minimize shipping costs
- Proven solutions that extend equipment lifespan, reducing long-term expenses

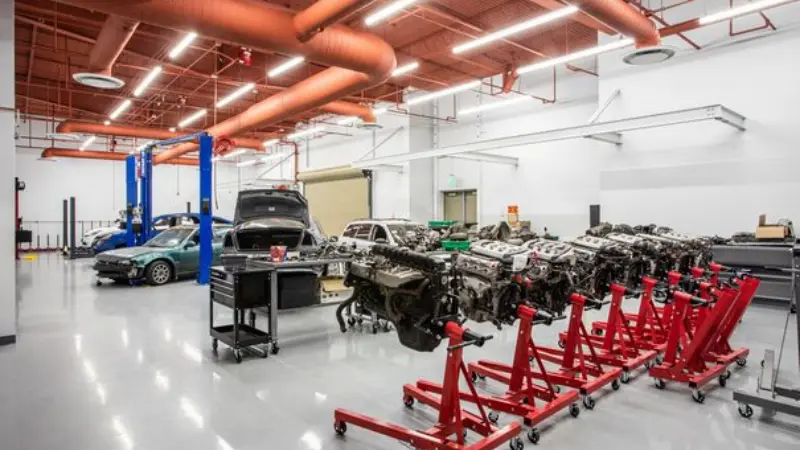

Safety Standards and Compliance
Safety is non-negotiable in an automotive training environment. Schools must design layouts that comply with both international standards and local educational regulations.
Ventilation and Exhaust Requirements
- Install fume extraction systems to remove exhaust gases.
- Ensure natural and mechanical ventilation to maintain air quality.
Electrical Safety & EV Training Standards
- Dedicated insulated areas for high-voltage EV systems.
- Compliance with standards such as IEC 61851 (EV charging) and OSHA electrical safety guidelines.
Student Safety Protocols
- Minimum 1.5 m clearance between vehicles and equipment.
- Clearly marked emergency exits and evacuation routes.
- Mandatory safety briefings and protective equipment for students.
Compliance with Education Standards
Many governments and education boards set guidelines for training facilities. For example:
- U.S. National Automotive Technicians Education Foundation (NATEF) standards
- European VET guidelines for vocational schools
- Local Ministry of Education requirements for space and equipment
VocatEdu designs equipment and layouts that already meet or exceed international standards, ensuring schools remain compliant during inspections and certifications.
Future Trends in Automotive Training Room Design
The automotive industry is evolving rapidly, and training facilities must keep pace with new technologies.
EV & Hybrid Training Labs
As electric vehicles grow, schools must include dedicated EV labs with battery trainers, charging stations, and high-voltage safety modules. Global EV sales reached 14 million units in 2023, making this a critical curriculum area.
Smart Classroom Integration
Future-ready labs integrate multimedia systems, remote diagnostics, and simulation software. This supports hybrid teaching models and allows students to practice with both physical and virtual trainers.
Modular & Mobile Labs
Portable training modules allow schools with limited space or budgets to create flexible, scalable labs. Mobile labs are particularly useful for government training programs or remote vocational centers.
By adopting these trends, schools ensure their training facilities remain relevant for the next decade of automotive education.
Conclusion & Call to Action
A successful automotive training room layout balances safety, efficiency, and adaptability. Whether your institution needs a compact setup for 20 students or a large facility with advanced EV training, thoughtful planning ensures both short-term success and long-term scalability.
At VocatEdu, we provide not just equipment, but complete turnkey solutions—from layout design consulting to equipment supply and installation. Our global experience ensures schools receive cost-effective, compliant, and future-ready training facilities.
Ready to design your automotive training room?
👉 Contact VocatEdu today to get a customized training room design plan that fits your school’s size, budget, and curriculum.
