Automotive Cutaway Models Manufacturer – For Real Visual Learning
Whether you’re training the next generation of automotive technicians or upgrading your technical education lab, VocatEdu’s cutaway models provide a safe, intuitive, and effective way to teach complex vehicle systems.
From engines to transmissions to EV battery packs, our models offer real internal structures, clearly labeled components, and durable classroom-ready designs.
- Quick Production Time — Ready Within 10–30 Days
- Custom-Built for Your Needs
- Proven Experience in Government & TVET Projects
What Are Automotive Cutaway Models?
Cutaway models are real automotive components professionally sectioned to reveal their internal structure and working mechanisms. All models are mounted on stands or casters for display, and components are painted, labeled, and often color-coded to enhance learning.
Why Use Them in Education:
✅ Clearly demonstrate system structure and flow
✅ Reduce risk – no live current or moving parts
✅ Perfect for entry-level students or group demonstrations
✅ Reinforce theoretical lessons with real-world visuals
Full Range of Automotive Cutaway Models from VocatEdu
Explore our professionally engineered cutaway training models, designed to give students a clear, visual understanding of internal vehicle systems. Ideal for technical schools, automotive colleges, and vocational training centers.
New Energy Engine & Transmission System Cutaway Model
$2,500 – $3,000
Transmission Models
$2,800 – $3,000

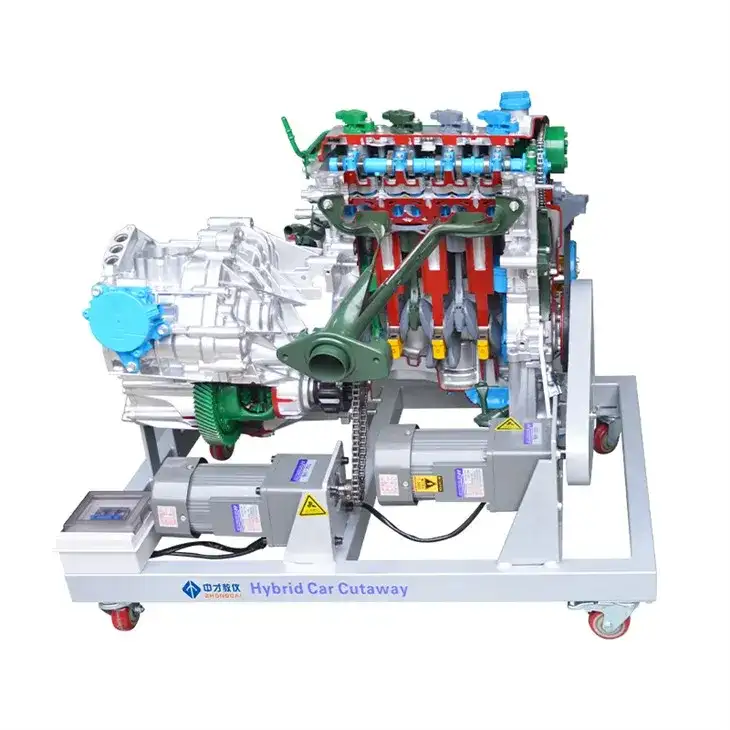

Hybrid System (Petrol / Electric) Cutaway Model
$2,200 – $2,800

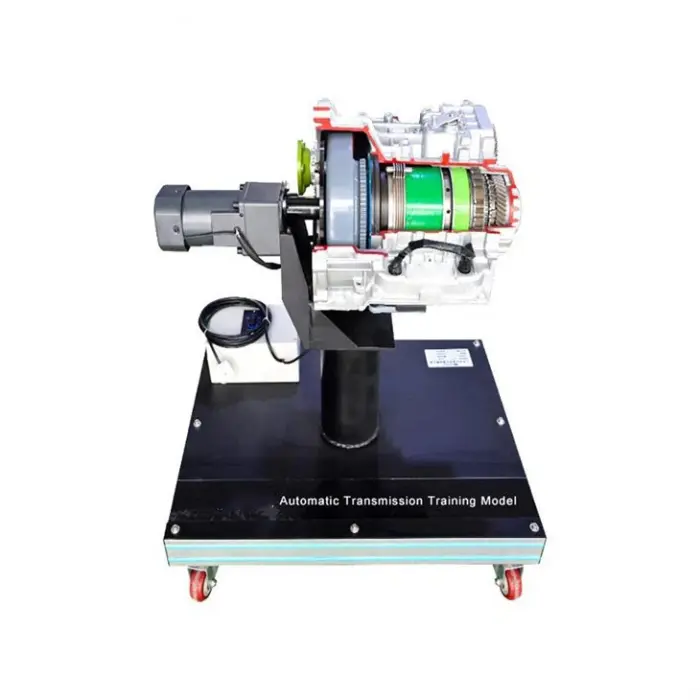

Automatic Transmission Cutaway
$1,800 – $2,500

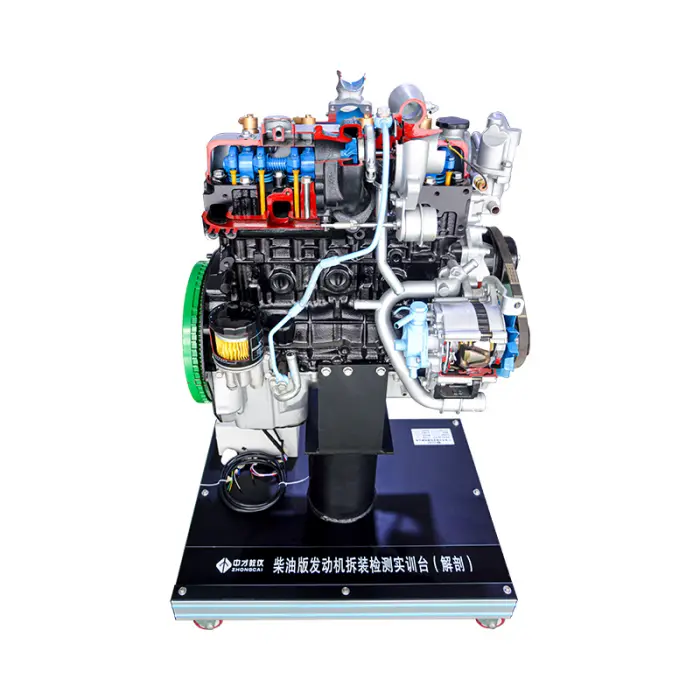

Common Rail Diesel Engine (Car) Cutaway Model
$1,500 – $2,200

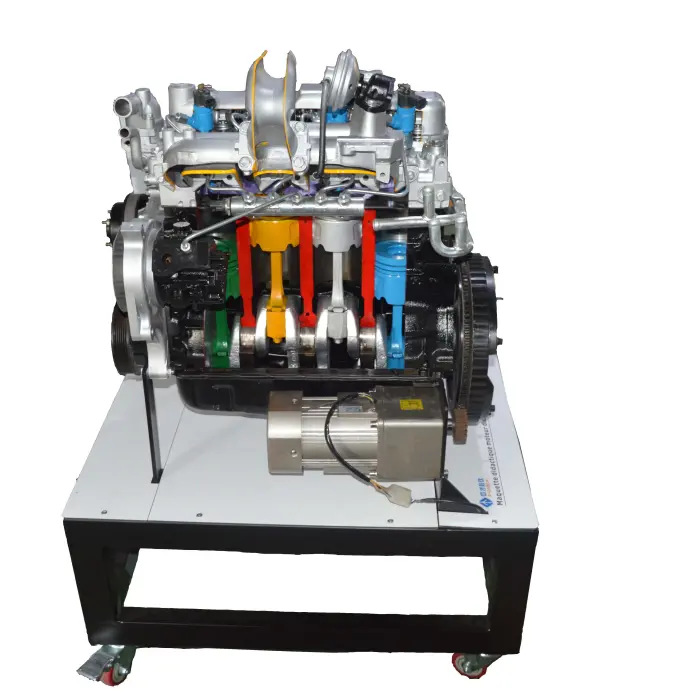

Diesel Engine Cutaway Model
$1,200 – $1,800

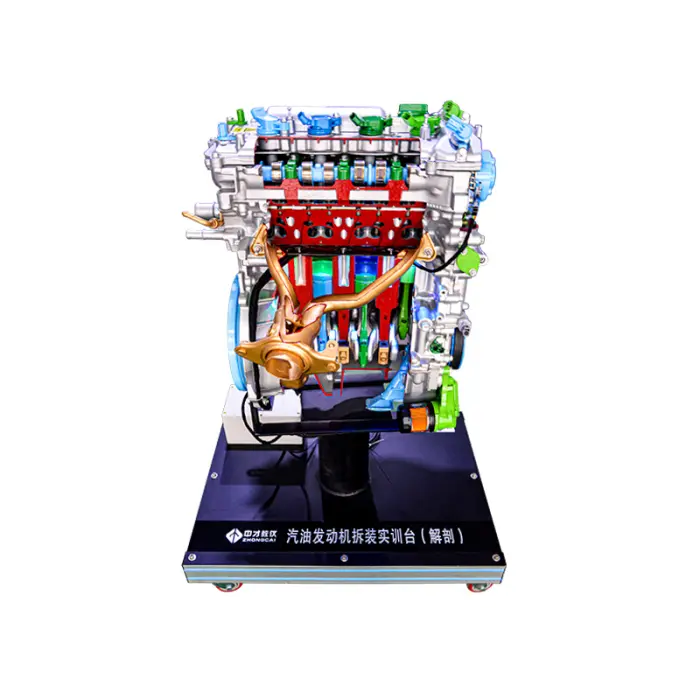

Petrol (Gasoline) Engine Cutaway Model
$1,000 – $1,500

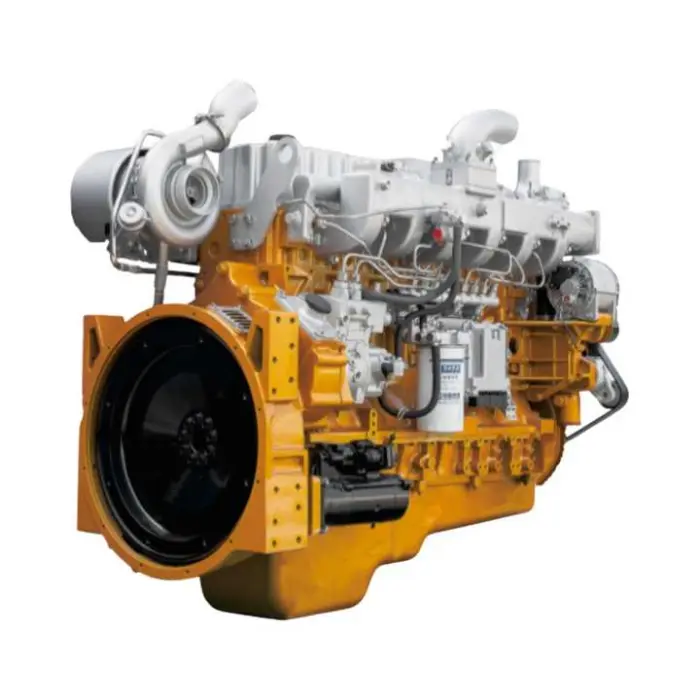

Diesel Truck Engine Cutaway Model
$2,000 – $2,800
Customization Options from VocatEdu
Every institution has different training goals. That’s why we offer tailored cutaway models to meet your needs.
Language
Labels, manuals, and worksheets available in English, Spanish, French, Arabic, and more.
Voltage & Safety Standards
Choose from 12V/24V/110V/220V; models meet local electrical and safety requirements.
Branding
Add your school or institution’s logo and colors for a professional, custom look.
Curriculum Match
We align content and labeling with your national or institutional training standards.
How to Set Up and Use Our Automotive Cutaway Models (Gasoline Engine Cutaway Model): The Complete Guide
Our Gasoline Engine Cutaway Model is designed for effortless setup, maximum classroom engagement, and safe, hands-on engine theory instruction. Below is everything you need to know to integrate this model into your training space — from unboxing to daily use.
📦 Step-by-Step Setup Guide
1. Unpacking and Initial Inspection
Remove the outer protective crate or carton.
Inspect the model for any visible damage during transport (photos are recommended).
Confirm that the nameplate, color-coded sections, and labels are intact.
Review the user manual and checklist included in the packaging.
2. Positioning the Model

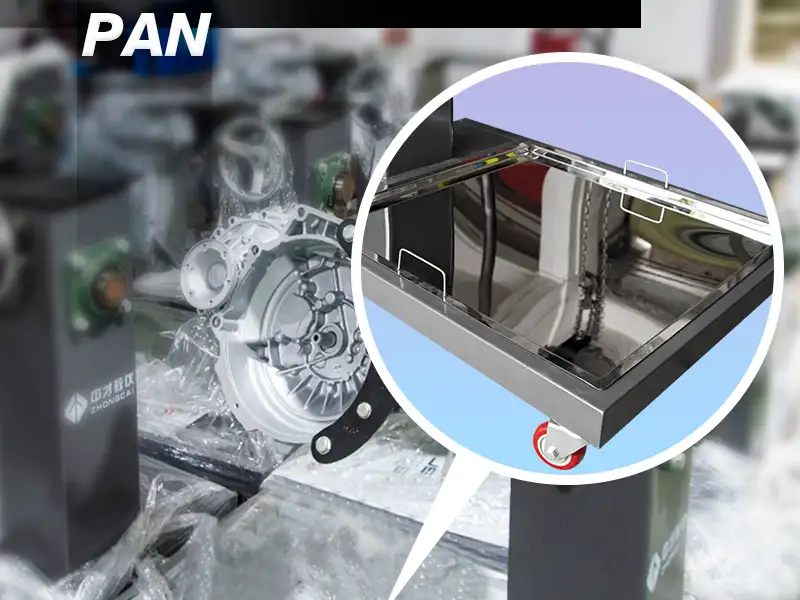

The engine cutaway comes pre-mounted on a steel stand with wheels or fixed base.
Place the model on a level surface, preferably in a well-lit classroom or workshop.
Engage the wheel locks (if mobile) to ensure safe demonstration.
3. Optional Safety Shield Installation
If your model includes an acrylic safety enclosure, attach it using the provided bolts and frame guide.
This is recommended for use in public exhibitions, open labs, or student self-study zones.
🧠 How to Use the Cutaway Model in the Classroom
Visual Demonstration
Use the cutaway model to visually explain engine subsystems:
Cylinder, piston, crankshaft
Intake and exhaust valves
Spark plug and combustion chamber
Lubrication and cooling pathways
Color-coded parts help students easily distinguish between fuel, air, and oil circuits.
Group Learning Activities
Assign students to identify labeled parts using a printed or digital worksheet.
Encourage them to trace the combustion cycle using a pointing tool or virtual overlay.
Combine with whiteboard or projector to explain combustion phases (intake, compression, power, exhaust).
Interactive Teaching Ideas
Use stickers or markers to simulate common engine faults (e.g., worn piston rings, clogged injectors).
Ask students to propose diagnostics or preventive maintenance steps.
Pair with theory tests or oral quizzes.
🛡 Safety & Maintenance Tips
Always remind students not to apply excessive pressure on cutaway parts.
Clean surfaces weekly using a dry cloth; avoid water or solvents.
Re-tighten stand bolts periodically (especially if frequently moved).
Keep the original packaging if relocation or storage is planned.
🎓 Teaching Materials Included
Each Gasoline Engine Cutaway Model comes with:
Instructor Manual (PDF & Print)
Engine Diagram Posters (A3 size, laminated)
Student Labeling Worksheet Template
Suggested Lesson Plan (45–60 mins module)
💡 Need integration with your national curriculum or automotive certificate program? Contact us for customization.
Send Your Inquiry Today
We Help You Procure More — At No Extra Cost
Many government or education projects require purchasing a wide range of training equipment, not just cutaway models.
What We Can Help You Source:
Basic mechanical training tools
Automotive diagnostic equipment
Electromechanical and EV accessories
Classroom AV systems & lab furniture
Custom branding and packaging
Our goal is simple: help you win the bid, meet your specs, and stay on budget — all while focusing on what matters most: building better training outcomes.
Automotive Cutaway Models Pricing & Lead Time from VocatEdu: The Complete Guide
At VocatEdu, we’re committed to providing high-quality cutaway training models at competitive prices, with reliable delivery timelines — so you can plan your automotive education programs with confidence.
📊 Estimated Price Range by Model (EXW China, USD)
| Product Name | Estimated Price Range (USD) |
|---|---|
| New Energy Engine & Transmission System Cutaway Model | $2,500 – $3,000 |
| Whole Car Cutaway Model | $2,800 – $3,000 |
| Hybrid System (Petrol / Electric) Cutaway Model | $2,200 – $2,800 |
| Automatic Transmission Cutaway (Educational Model) | $1,800 – $2,500 |
| Common Rail Diesel Engine (Car) Cutaway Model | $1,500 – $2,200 |
| Diesel Engine Cutaway Model | $1,200 – $1,800 |
| Petrol (Gasoline) Engine Cutaway Model | $1,000 – $1,500 |
| Continuously Variable Transmission (CVT) Cutaway Model | $1,600 – $2,200 |
| Diesel Truck Engine Cutaway Model | $2,000 – $2,800 |
💡 Final pricing depends on selected model complexity, customization needs (e.g., logo, language labeling, safety covers), and order quantity. Discounts available for bundled orders or TVET project packages.
⏱️ Lead Time Overview
| Order Type | Production Time | Notes |
|---|---|---|
| Standard Models | 10–15 working days | For stock models without custom branding or labeling |
| Customized Models | 15–30 working days | Includes logo, language, safety enclosure, or structural tweaks |
| OEM/Private Label | 20–35 working days | For white-label or bulk production projects |
| Shipping Time | Air: 5–10 days Sea: 20–35 days | Based on destination country |
📦 What’s Included in the Price?
Professionally sectioned and labeled model
Stable steel frame or wheeled base
English or multi-language label set
Instructor manual & PDF schematics
Export packaging (steel or plywood crate)
12-month warranty
Optional: safety covers, posters, branding
🌍 Global Delivery Support
We ship worldwide to training centers, colleges, and TVET institutions across:
Asia (Philippines, Malaysia, India, Vietnam)
Africa (Nigeria, Kenya, South Africa, Egypt)
Europe & Middle East (UK, UAE, Turkey)
South America & Caribbean
All shipments include CE/ISO documentation, export declarations, and inspection photos before dispatch.
Send Your Inquiry Today
Success Cases & Testimonials
